4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts

1 set
MOQ
To Be Negotiable
Prix
4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Taper: Diamond Wire Saw Machine
Code HS: 84641090
Diamètre de la roue: 1600 mm
Spécification: 7800*6800*4250mm/8800*6800*4250mm
Voltage de la source: 380v
Origine: Fujian, Chine
Paquet de transport: Charge dans un conteneur de 20 pieds
Détails de livraison: Négociable
Mettre en évidence:

360° Servo-Rotary Table CNC Diamond Wire Saw Machine

,

16-Surface Slideway Diamond Wire Saw Machine

,

28 Rolling-Wheel Synchronous Lifts 4-Axis CNC Wire Saw
Informations de base
Lieu d'origine: Jinjiang, Fujian, Chine
Nom de marque: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Numéro de modèle: Découverte-2500SA/3000SA
Conditions de paiement et expédition
Détails d'emballage: Arrimage par câble métallique, adapté au transport maritime/aérien/terrestre/ferroviaire.
Délai de livraison: 1 mois
Conditions de paiement: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 1000 ensembles / an
Description de produit
Discovery 4 (Plus)—Ultimate 4-Axis CNC Diamond Wire Saw Machine
Discovery 4 (Plus) — Ultimate 4-Axis CNC Diamond Wire Saw Machine
360° servo-rotary table, 16-surface slideway, 28-wheel lift—cut curves, columns, letters & tombstones up to 3 m.
Machine Overview

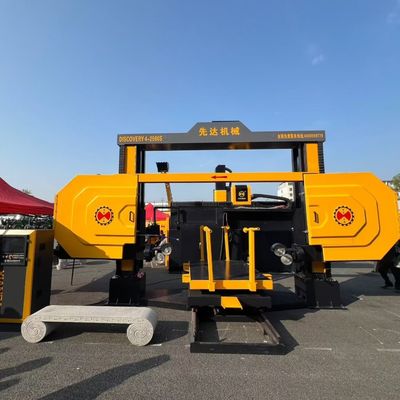

Discovery 4-2500SA / 3000SA is the "Plus" flagship of CNC diamond wire saws. A four-axis, fully digital center with a 360° servo-rotary table, 16-surface slideways, and 28 rolling-wheel synchronous lifts that sculpts arcs, columns, letters, Chinese characters, and tombstones up to 3 m × 3 m × 1.5 m in a single program, delivering mirror-quality surfaces.

Why Discovery 4 (Plus)?
Feature Benefit
360° servo-rotary table Cuts 360° cylinders, 4-side dressing, 3-D reliefs without repositioning
16-surface slideway + 28 rollers Zero backlash, 20 t load, vibration-free wire guidance
S-type waterproof gearbox Sealed against sludge, 3× longer gearbox life
15 kW permanent-magnet motor Constant torque 20-40 m/s, 15% energy saving
Plus frame reinforcement Absorbs 20 t loads

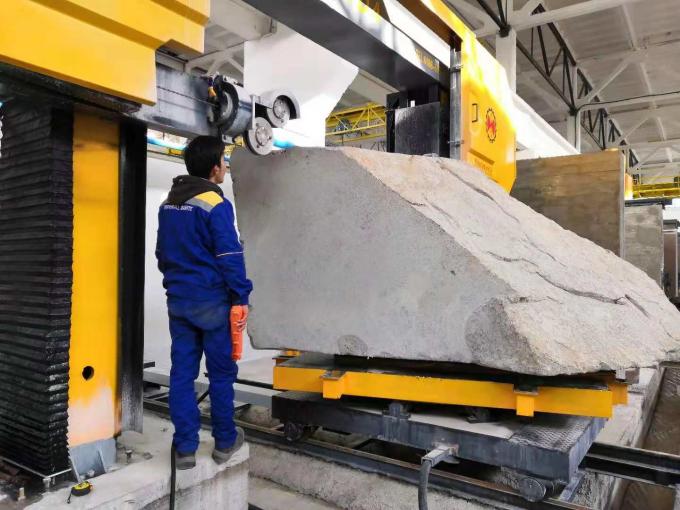

4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts 0 Close-up of 360° servo-rotary table mechanism 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts 2 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts 3 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts 4 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts 5 4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts 6
Model Range
Model Max Block Table Size Footprint Weight Wire Wheel
Discovery 4-2500SA 2.5 × 3 × 1.5 m 1.4 × 2 m 7.8 × 6.8 × 4.25 m 8.25 t Ø1600 mm
Discovery 4-3000SA 3 × 3 × 1.5 m 1.6 × 2 m 8.8 × 6.8 × 4.25 m 8.75 t same

Same 20-40 m/s wire speed, 15 kW PM motor, and 3 m³/h water system for both models.

Four-Axis Motion & Functions
  • X-axis - table longitudinal (block length)
  • Y-axis - cross beam transverse (block width)
  • Z-axis - vertical head lift (block height)
  • C-axis - servo-driven 360° rotation (continuous cylinder or four-face dressing)

Result: true 3-D sculpture, 360° column, four-sided squaring, or curved façade panel without repositioning.

Application Gallery
  • 360° columns - Ø300-2200 mm, full or barrel
  • Arc slabs - curved wall cladding, column façades
  • Numerals & letters - 3-D signage, address stones
  • Chinese characters - artistic monuments
  • Tombstones - shaped headstones, curved borders
  • Four-side dressing - squaring 20 t-blocks

Materials: granite, marble, quartzite, basalt, engineered stone.

Pricing, MOQ & Shipping
Item Detail
MOQ 1 (one) machine
Shipping Sea freight to nearest port included
Incoterms FOB, CIF, DDP optional
Lead time 35 days stock / 45 days custom
Payment T/T 30% deposit, 70% before shipment; L/C at sight accepted
