Aperçu /Produits/Machine de polonais en pierre de dalle/Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle

Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle

1
MOQ
To Be Negotiable
Prix
Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Structure: Structure de ponts
Contrôle: CNC
Matériel: marbre, granit et surfaces en pierre naturelle
Moteur principal: 15 kW
Puissance totale: 19 kW
Dimension de contour: 5300*5000*3000MM
Consommation d'eau: 2m³/h
Nombre de tête de broyage: 8 pcs
Mettre en évidence:

gantry stone polishing machine

,

automatic feed polishing machine

,

single head slab polisher
Informations de base
Lieu d'origine: Jinjiang, Fujian, Chine
Nom de marque: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Numéro de modèle: ZDPM-3522/3545
Conditions de paiement et expédition
Détails d'emballage: Ensemble en plastique, adapté au transport en mer
Délai de livraison: 1 mois
Conditions de paiement: L / C ， T / T ， D / P ， Western Union ， Paypal ， Money Gram ， autres
Capacité d'approvisionnement: 1000 ensembles / an
Description de produit
Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle

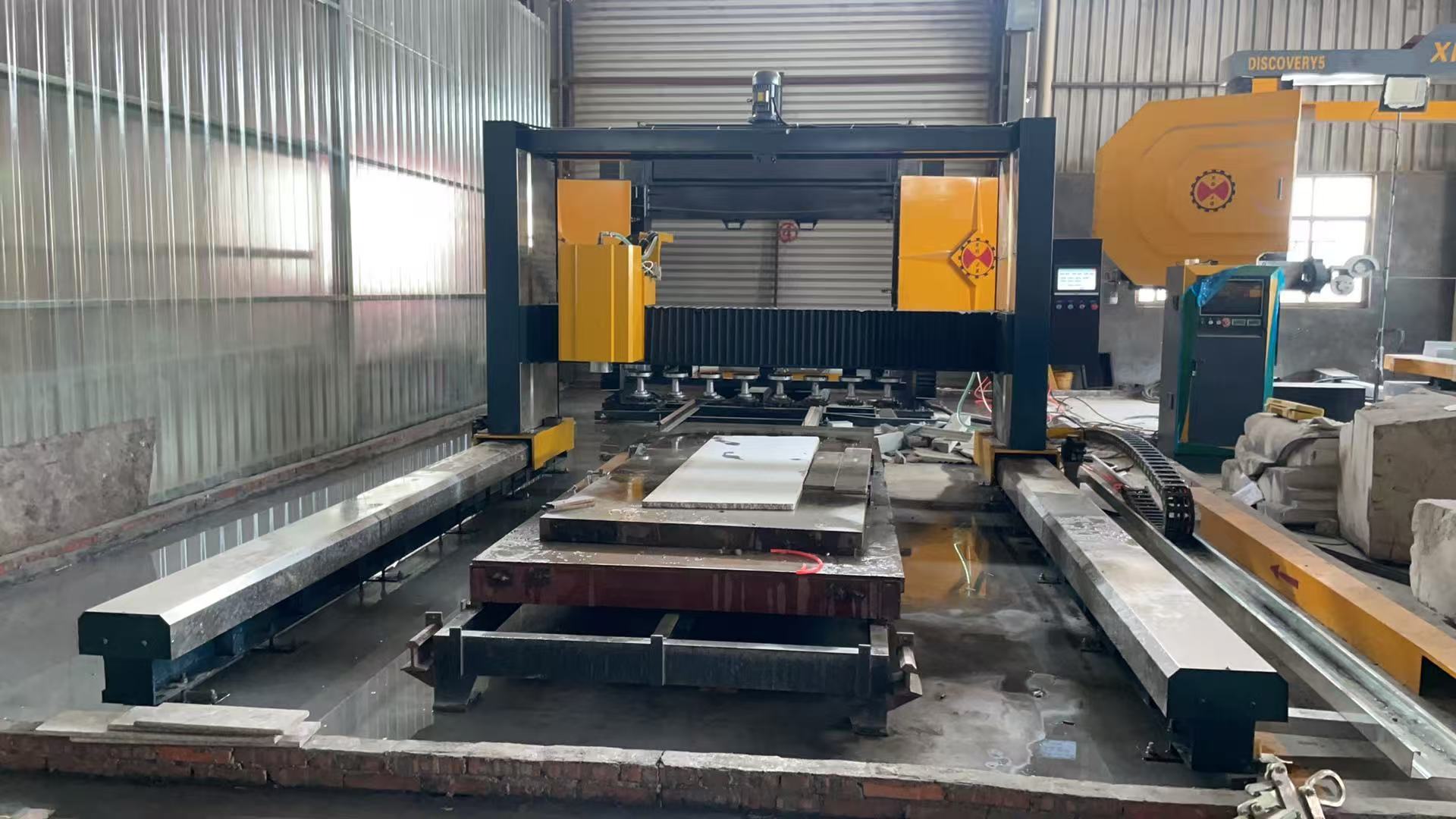

Heavy-Duty Gantry Intelligent Polishing Machine
Our Microcomputer-Controlled Gantry Polishing Machine delivers precision and efficiency for industrial finishing applications. Designed to overcome challenges like inconsistent results and slow workflows, this solution balances speed, accuracy, and ease of use for metal components, automotive parts, and hardware processing.
Technical Specifications
Parameter Unit LMPM-2532
Number of Station pcs 8
Number of spindle heads pcs 1
Grinding Head replacement method / Automatic
Lifting strock mm 1200
Left and right travel mm 2500
Front and back travel mm 3500
Main motor power kw 11
Total power kw 17
Side-beam travel structure / linear guide structure
Front/Rear drive mode / Dual motor Y-axis drive
Overall dimensions mm 5300*5000*3000
Total water consumption m³/h 2
Core Design: Stability & Precision Built In
This machine's foundation is engineered to eliminate common polishing flaws:
  • Microcomputer control + gantry mobile structure: Coordinates movements with pinpoint accuracy to avoid uneven finishes.
  • Four-guide-rod crossbeam lifting: Ensures ultra-smooth, wobble-free movement for consistent results.

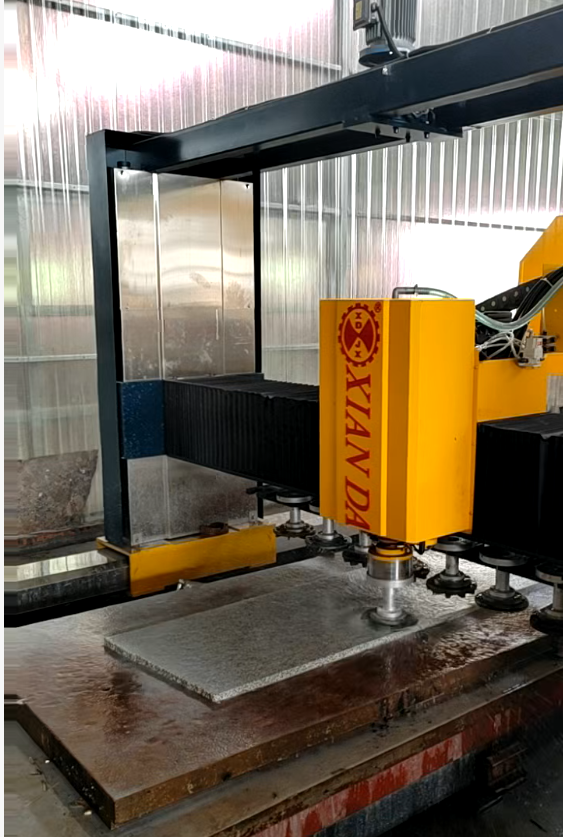

  • Pneumatic machine head + high-precision components: Delivers high efficiency, tight precision, and stability for high-volume production.
Flexible Polishing System: Adapt to Any Job
No need for multiple specialized tools—this machine fits diverse workflows:
  • Station-specific controls: Each station can be toggled independently with adjustable speed and pressure.
  • User-friendly program settings: Quickly input parameters for different workpiece sizes, materials, and finishes.
Automatic Tool Change: Cut Labor, Boost Output
Address labor shortages and costs with this time-saving feature:
  • Automatic tool change function: Eliminates slow, error-prone manual swaps.
  • One operator can manage multiple machines simultaneously, freeing teams for higher-value tasks.
Ideal For High-Demand Industries
This machine supports production lines across sectors:
  • Automotive: Polish engine parts, chassis components, and wheel rims.
  • Metal Fabrication: Finish steel plates, welded structures, and profiles.
  • Hardware/Sanitary Ware: Handle small fixtures and larger parts alike.
Ready to Upgrade Your Polishing Process?
This machine delivers faster production, lower labor costs, and consistent quality. Contact us for a free consultation, quote, or demo:
Email: group@chinaxianda.com
Phone: +8613055673306
